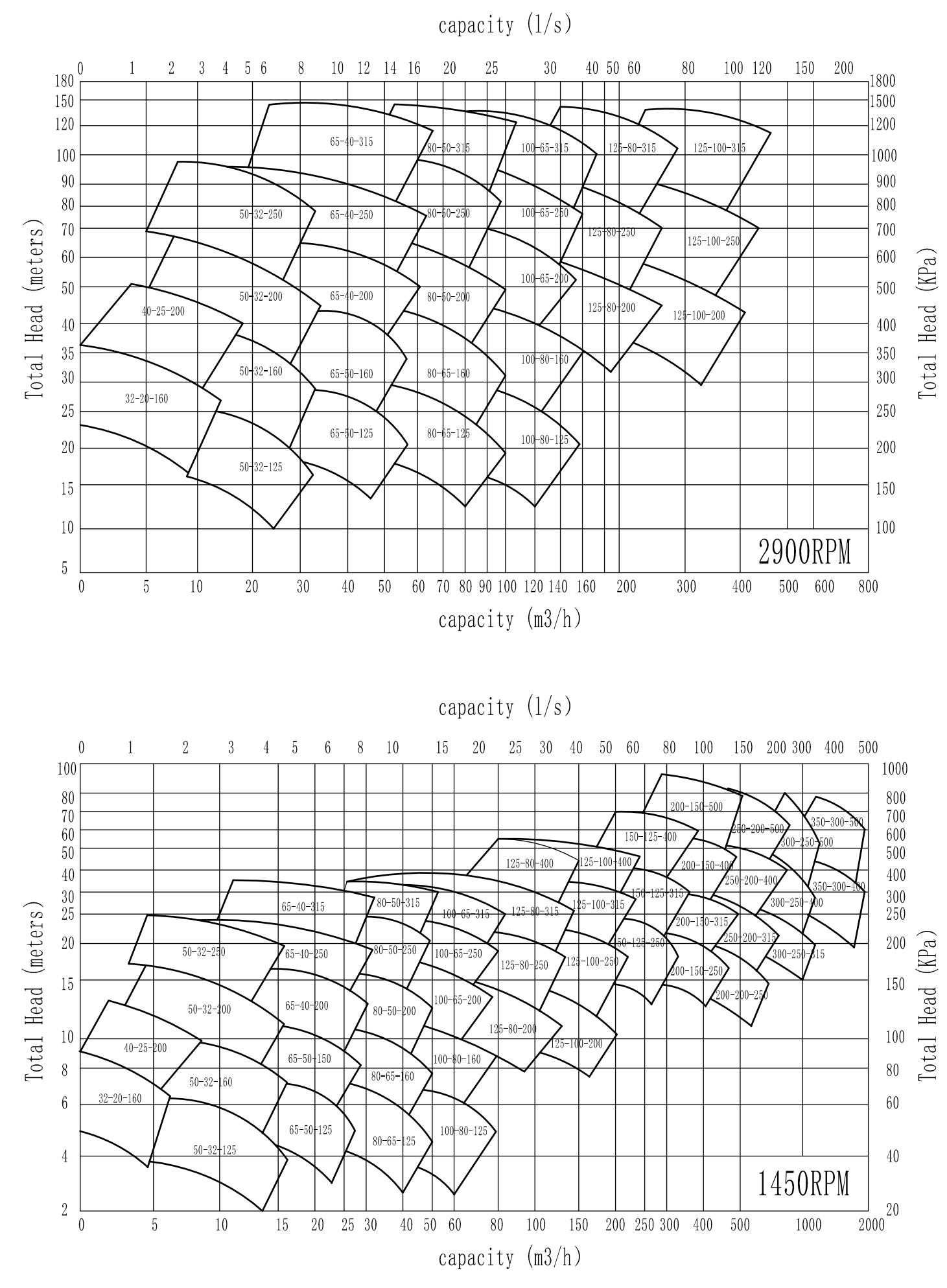

欧宝买球(中国)型谱

1. 欧宝买球(中国)  centrifugal pump

为了确保产品品质，欧宝买球泵所有零部件都在厂内生产，为了保证始终如一的

高品质，我们从订单到设计、加工、组装、检测为止，严格监控整个生产环节，我们拥有 的生产设备，保证产品能够满足客户需求，我们制造的每个零部件都检验合格。

特点：

简单紧凑的设计提高了空间利用率和易操作性

高效节能设计

性能稳定

可靠的机械密封

材质：铸铁、不锈钢SUS304\SUS316、铜

无石棉包装符合环保要求

闭式叶轮-用于泵送清洁液体，或含少量杂质液体。

Closed impeller  is used for pumping clean liquids or liquids containing some impurities.

开式叶轮-用于泵送含固体颗粒，磨蚀性液体或浓度高达8%的纸浆

Oper impeller  is designed for liquids containing solid particles. Abrasive liquids or paper stock up to 8% consistency.

特殊开式叶轮- 用于泵送含大颗粒、长纤维、磨蚀性夜里或是浓度高达8%的纸浆

Special open impeller  is suitable for liquids containing bigger solid particles and long fibers, abra-sie liquids or paper stock up to 8% consistency.

单端面机械密封  single mechanical seal

双端面机械密封  Double mechanical seal

填料密封        Gland packing

重型轴，在密封腔的扰度偏差小于0.05mm，标准材料为高强度的双相不锈钢

Heavy-duty shaft.Deflection at stuffing box less than o.05mm.High strength duplex stainless steel steel shaft material sa standard.

机械密封-有多种不同结构的机械密封可供选择。单端机械密封用于不带循环液的泵送场合，密封面可用泵送介质润滑，外界冲洗液或用油脂润滑。针对一些特别苛刻的工况，还可选用双端面机械密封，这时需外接密封水。

Mechanical seals

Various mechanical seal configurations are available. A single mechanical seal is used for many applications with no circulation liquid. Flushing with internal/external circulation liquid or with grease is available. For extremely demanding liquids and application, double mechanical seals can be selected. Sealing liquid from an external source is required.

填料密封-带外冲洗的填料密封可防止输送液体流入密封腔，带压冲洗液可混入输送液体，也可通过外接排水管排出。

Gland packing

Gland packing with external flushing prevents the pumped liquid from penetrating into the seal housing.The pressurised flushing liquid causes it to flow into the pumped liquid. Alternatively the external flushing liquid can have a seperater outlet connection.

性能参数

规格DN：32-350mm

流量Q：可达2000m³/h

扬程H：可达150m

工作压力P:可达1.6MPa

介质温度T:-20℃～105℃

Operating Data

Sizes DN:      32-350mm

Capacity Q:    up to 2000m³/h

Head H:        up to 150m

Pressure P:    up to 1.6MPa

Temperature T: -20 -105℃
